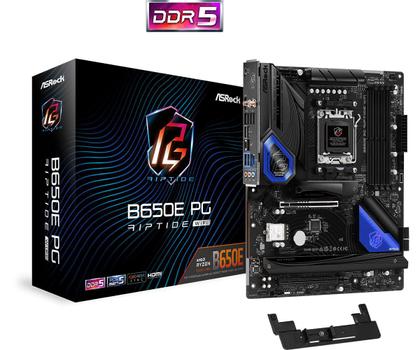

ASROCK B650E PG Riptide WIFI

B650E PG Riptide WiFi

• Supports AMD Ryzen™ 7000 Series Processors
• 14+2+1 Phase Power Design, SPS
• 4 x DDR5 DIMMs, supports up to 6600+(OC)
• 1 PCIe 5.0 x16, 1 PCIe 3.0 x16,
• 1 PCIe 4.0 x1, 1 M.2 Key-E for WiFi
• Graphics Output Options: 1 HDMI
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4),
• 1 Hyper M.2 (PCIe Gen4x4),
• 1 M.2 (PCIe Gen3x2 & SATA3),
• 4 SATA3
• 1 USB 3.2 Gen2x2 Type-C (Front),
• 2 USB 3.2 Gen2 Type A+C (Rear),
• 4 USB 3.2 Gen1 (2 Rear, 2 Front),
• 9 USB 2.0 (6 Rear, 3 Front)
• Killer 2.5G LAN
• 802.11ax Wi-Fi 6E + Bluetooth

• Superb Productivity
  • PCIe Gen5 (Graphics, M.2)
  • Dual Channel DDR5
• RockSolid Durability
  • ServerGrade LowLoss PCB
  • 14+2+1 Power Phase, 60A SPS
  • Flexible Integrated I/O Shield
• Ultrafast Connectivity
  • Killer 2.5G LAN
• 802.11ax WiFi 6EModule
  • ASRock Lightning Gaming Ports
• EZ Update
  • BIOS Flashback Button
  • ASRock Auto Driver Installer
• EZ Troubleshooter
  • ASRock Post Status Checker

• Supports AMD Socket AM5 Ryzen™ 7000 Series Processors

• AMD B650

• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 nonECC, unbuffered memory up to 6600+(OC)
• Max. capacity of system memory: 128GB
• Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

• 256Mb AMI UEFI Legal BIOS with GUI support

• Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Killer E3100G
• Supports Killer LAN Software

• 802.11ax WiFi 6E Module
• Supports IEEE 802.11a/b/g/n/ac/ax
• Supports DualBand 2x2 with extended 6GHz band support
• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth + High speed class II
• Supports MUMIMO

• CPU:
  • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
  • 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode
• Chipset:
  • 1 x PCIe 4.0 x1 Slot (PCIE2)
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
  • Supports AMD CrossFire™
  • 15μ Gold Contact in VGA PCIe Slot (PCIE1)

• CPU:
  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
• Chipset:
  • 1 x M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes
  • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
  • 2 x SATA3 6.0 Gb/s Connectors
• ASMedia ASM1061:
  • 2 x SATA3 6.0 Gb/s Connectors

• Supports RAID 0 and RAID 1 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

• 1 x USB 3.2 Gen2x2 TypeC (Front)
• 1 x USB 3.2 Gen2 TypeC (Rear)
• 1 x USB 3.2 Gen2 TypeA (Rear)
• 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
• 9 x USB 2.0 (6 Rear, 3 Front)

• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 1 x CPU Fan Connector (4pin)
• 1 x CPU/Water Pump Fan Connector (4pin) (Smart Fan Speed Control)
• 4 x Chassis/Water Pump Fan Connectors (4pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x 4 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x Thunderbolt™ AIC Connector (5pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
• 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x USB 3.2 Gen2 TypeA Port (10 Gb/s) (ReDriver)
• 1 x USB 3.2 Gen2 TypeC Port (10 Gb/s) (ReDriver)
• 2 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports)
• 6 x USB 2.0 Ports
• 1 x RJ45 LAN Port
• 1 x BIOS Flashback Button
• HD Audio Jacks: Line in / Front Speaker / Microphone

• Software
  • ASRock Motherboard Utility (Phantom Gaming Tuning)
  • Killer Control Center
  • ASRock Polychrome SYNC
• UEFI
  • ASRock Full HD UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash

• 1 x User Manual
• 2 x SATA Data Cables
• 2 x ASRock WiFi 2.4/5/6 GHz Antennas
• 2 x Screws for M.2 Sockets
• 1 x Graphics Card Holder

• ATX Form Factor: 12.0in x 9.6in, 30.5 cm x 24.4 cm
• 8 Layer PCB

• Microsoft® Windows® 10 64bit / 11 64bit

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
